Sieve Analysis Chart - Free Download

Click the button below to download a free PDF file of a sieve analysis chart with graph.

You can save this file, then print and use as many copies of the sieve analysis chart as you wish.

The sieve analysis chart is free with the compliments of Impact Test Equipment.

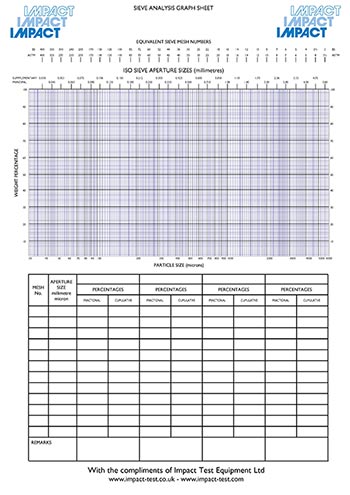

Sieve Analysis Chart

Pad of Sieve Analysis Charts


Sieve Analysis Pad, graph and tabulation paper, 25 sheets.

Sieve Storage Racks

  • Wall mounted or free standing
  • Manufactured from a plastic coated steel framework
SV030 & SV031 Sieve Storage Racks

SV030 - to hold up to 10 x 200mm diameter sieves

Dimensions: 295mm wide x 240mm deep x 810mm high

SV031 - to hold up to 10 x 300mm diameter sieves

Dimensions: 395mm wide x 340mm deep x 762mm high

SV032 - to hold up to 10 x 400mm diameter sieves

Dimensions: to be confirmed
